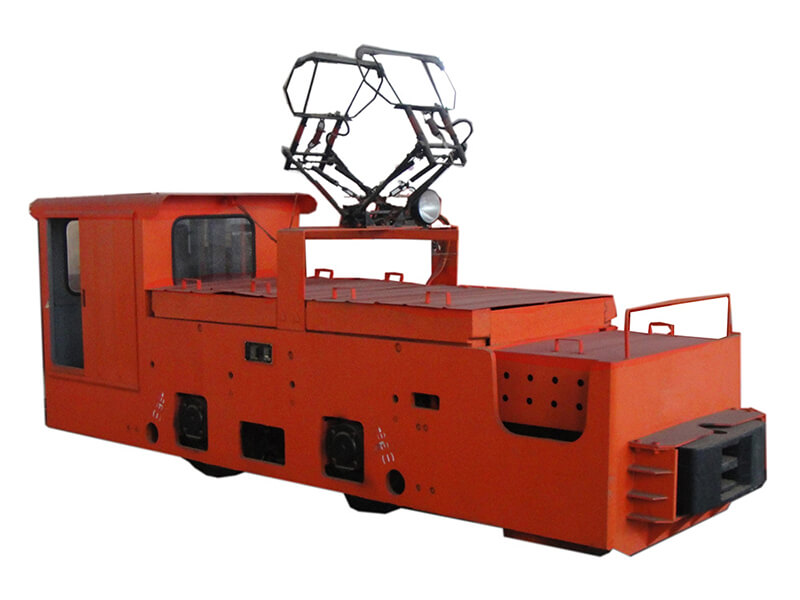

Mining Trolley Locomotive 1.5 Tons
Quantity
-
+

Mining Trolley Locomotive 1.5 Tons

    Frame

    Constructed in welded steel and suspended by spring on grease bearing seats with tapered roller bearings.

    Speed control

    In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.

    Brakes

    Mechanical drum brake to the coupler.

    Sanders

    Mechanical sanding system to the rails.

    Buffers

    The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Technical Specifications

Model Name CJY1.5/6, 7, 9G
Adhesive Weight1.5 tons
Track Gauge600, 762 or 900mm
Hourly SystemTraction2.55kN 3.24kN
Max. Traction3.68kN
Hourly System Speed4.54km/h 6.6km/h
Voltage100V 250V
Power of Electric Motor3.5kW*1 6.5kW*1
Length 2340mm 2370mm
Width950, 1076 or 1100mm
Height 1550mm
Wheelbase650mm
Wheel Diameter Φ460mm
Height of Pantograph 1600~2000mm 1800~2000mm
Height of Traction 320mm 210 or 320mm
Min. Turning Radius5m
Speed Regulating ModeResistance or IGBT
Braking Mode Mechanical Brake
